X30Dream series capsule house
A curved panoramic end for view-first sites. 29.1 m² · 1 bedroom · 1 bathroom · 1 balcony
The X30 is a space capsule house whose bedroom opens onto a balcony behind a curved panoramic glass end. At 29.1 m² it is made for sites where the view is the product: lakes, meadows and mountain edges.
The balcony end is wrapped in continuous curved glazing.
A private outdoor corner for each unit.
The streamlined shell stands out in resort marketing.

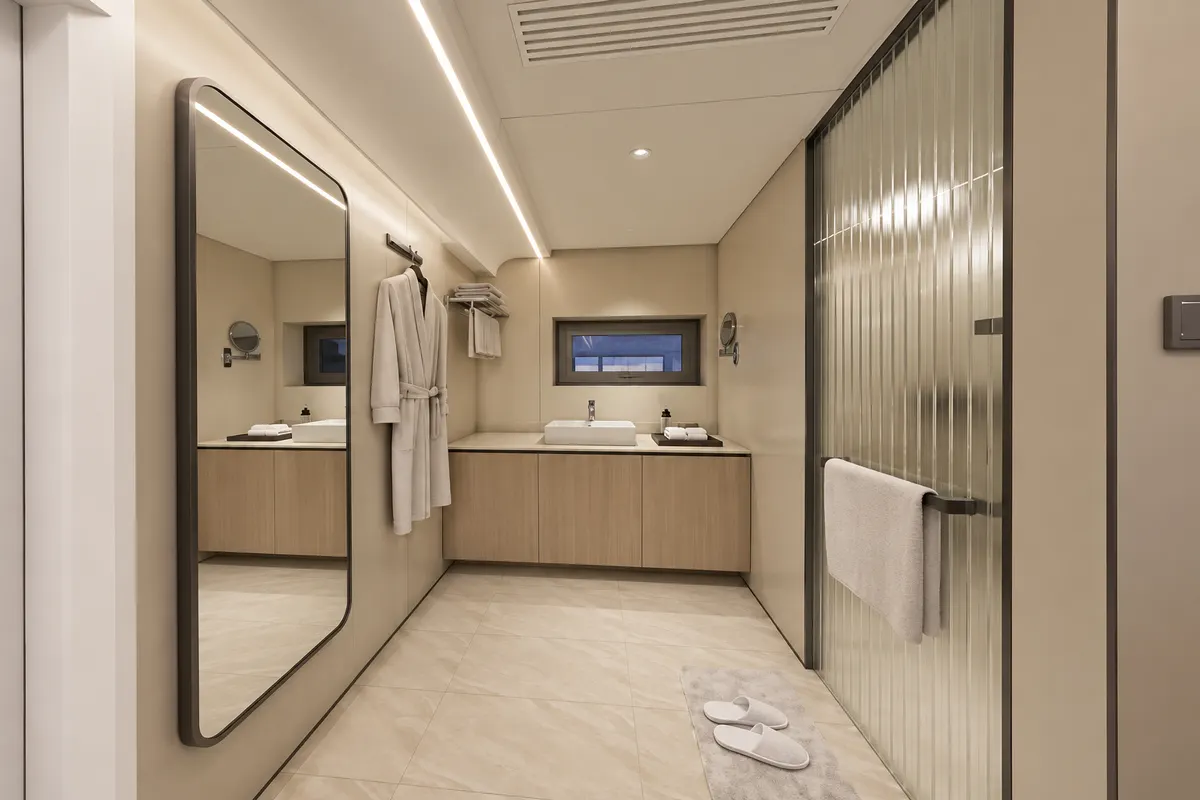

Bathroom, lighting, curtains, the control panel and air conditioning are installed before the module ships.
A welded 80 × 80 × 5 mm rectangular steel frame carries the shell, floor and fit-out as one module. Standard configuration includes a separated wet and dry bathroom, water heater, lighting, curtains, a control panel and air conditioning.
For cold regions the manufacturer offers thicker insulation, trace-heated water lines and auxiliary electric heating. Hot-climate glazing and cooling are confirmed per site.
- Model
- X30
- Series
- Dream
- Manufacturer
- Royalstar Smart House
- Exterior (L × W × H)
- 9.1 × 3.2 × 3.35 m
- Floor area
- 29.1 m²
- Layout
- 1 bedroom, 1 bathroom, 1 balcony
- Bedrooms / rooms
- 1
- Bathrooms
- 1
- Balcony
- 1
- Structure
- Welded 80 × 80 × 5 mm rectangular steel frame
- Shell
- Aluminium alloy panels
- Shell finish
- Baked fluorocarbon coating, five standard colours
- Walls
- 10–20 cm, polyurethane insulated
- Glazing
- Double-glazed Low-E; triple glazing optional
- Base
- Steel base for level footings (footings by others)
- Bathroom
- Separated wet and dry areas, toilet, shower
- Hot water
- Water heater
- Lighting
- Interior lighting and curtains
- Controls
- Room control panel
- Climate
- Air conditioning
- Options
- Cold-climate package, layout changes, finishes, logo
Specifications follow current manufacturer documentation and are confirmed with each quotation.
The X30 is a Dream-series space capsule house built around one idea: a curved panoramic glass end. Its bedroom opens onto a balcony behind that glass, inside a streamlined 9.1 × 3.2 × 3.35 m shell with 29.1 m² of floor area and a bathroom.
Because the view is framed from the bed, the X30 is made for sites where the view is the product: lakes, meadows and mountain edges. It has no separate living area, which keeps it compact; for longer stays, compare it with the F40 or the N38.
Best for
- View-first private retreats
- Glamping suites for couples
- Mountain and lakeside holiday rentals
How the X30 is quoted and delivered
The price of a X30 depends on its configuration (shell colour, glazing, climate package and fit-out), the number of units, the port of loading and the delivery terms. That is why this page shows no price: you receive a current, dated written quotation that states all of them.
Arrives with the module
- Welded steel frame and base
- Aluminium shell in the chosen colour
- Insulated walls and Low-E glazing
- Bathroom with toilet, shower and water heater
- Lighting, curtains and the room control panel
- Air conditioning
Prepared on your site
- Truck and mobile-crane access to the final position
- Level footings, sized by a local engineer
- Power supply sized for the unit
- Water supply and wastewater connection
- Local planning, building and use permits
Questions about the X30
The X30 measures 9.1 × 3.2 × 3.35 m (L × W × H) and has a floor area of 29.1 m², with one bedroom, one bathroom and a balcony.
No. The layout is one bedroom, one bathroom and a balcony. If guests need a separate living area, look at the F30 or N30 (about 30 m²), or the F40 and N38 (about 38 m²).
At the single best view on the site. Space units so that neighbouring glass ends do not look at each other, and on hot sites shade the glass from the afternoon sun.
Yes. The X30 is fitted out at the factory and ships as one complete module, wrapped and strapped on a flat-rack container or carried as deck cargo. The packing method and port of loading are confirmed in the quotation.
Level footings, usually concrete piers or strip footings, sized by a local engineer for your soil and the unit's weight. Footings, utility connections and approvals are arranged locally.
