N38Star series capsule house
A long-view suite with glass at both ends. 37.8 m² · 1 bedroom · 1 living area · 1 bathroom · 1 balcony
The N38 is an 11.8 m space capsule house with glazed ends and a balcony. A bedroom, living room and bathroom sit in a straight line, so every zone keeps a view.
Curved glazed ends bring light deep into the plan.
An outdoor space for waterside or hillside sites.

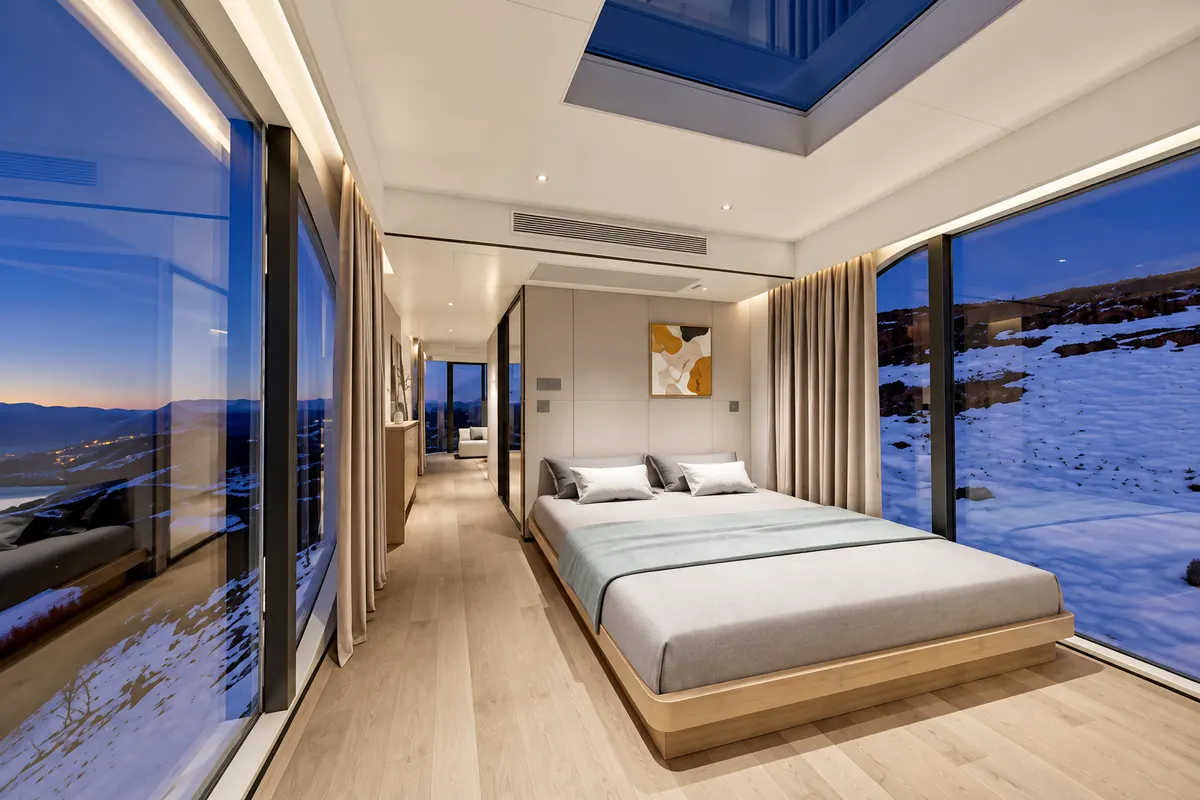

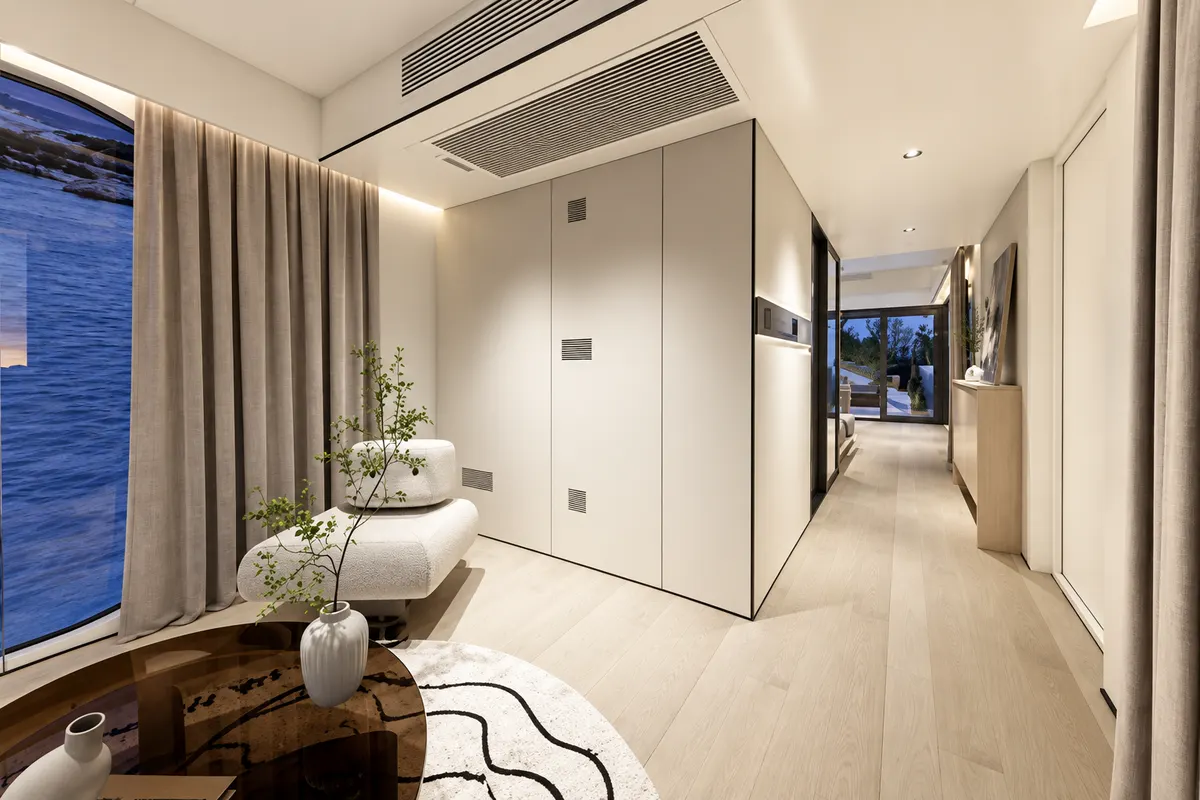

Bedroom, living room and bathroom in a clear sequence.
Bathroom, lighting, curtains, the control panel and air conditioning are installed before the module ships.
A welded 80 × 80 × 5 mm rectangular steel frame carries the shell, floor and fit-out as one module. Standard configuration includes a separated wet and dry bathroom, water heater, lighting, curtains, a control panel and air conditioning.
For cold regions the manufacturer offers thicker insulation, trace-heated water lines and auxiliary electric heating. Hot-climate glazing and cooling are confirmed per site.
- Model
- N38
- Series
- Star
- Manufacturer
- Royalstar Smart House
- Exterior (L × W × H)
- 11.8 × 3.2 × 3.2 m
- Floor area
- 37.8 m²
- Layout
- 1 bedroom, 1 living area, 1 bathroom, 1 balcony
- Bedrooms / rooms
- 1
- Bathrooms
- 1
- Balcony
- 1
- Structure
- Welded 80 × 80 × 5 mm rectangular steel frame
- Shell
- Aluminium alloy panels
- Shell finish
- Baked fluorocarbon coating, five standard colours
- Walls
- 10–20 cm, polyurethane insulated
- Glazing
- Double-glazed Low-E; triple glazing optional
- Base
- Steel base for level footings (footings by others)
- Bathroom
- Separated wet and dry areas, toilet, shower
- Hot water
- Water heater
- Lighting
- Interior lighting and curtains
- Controls
- Room control panel
- Climate
- Air conditioning
- Options
- Cold-climate package, layout changes, finishes, logo
Specifications follow current manufacturer documentation and are confirmed with each quotation.

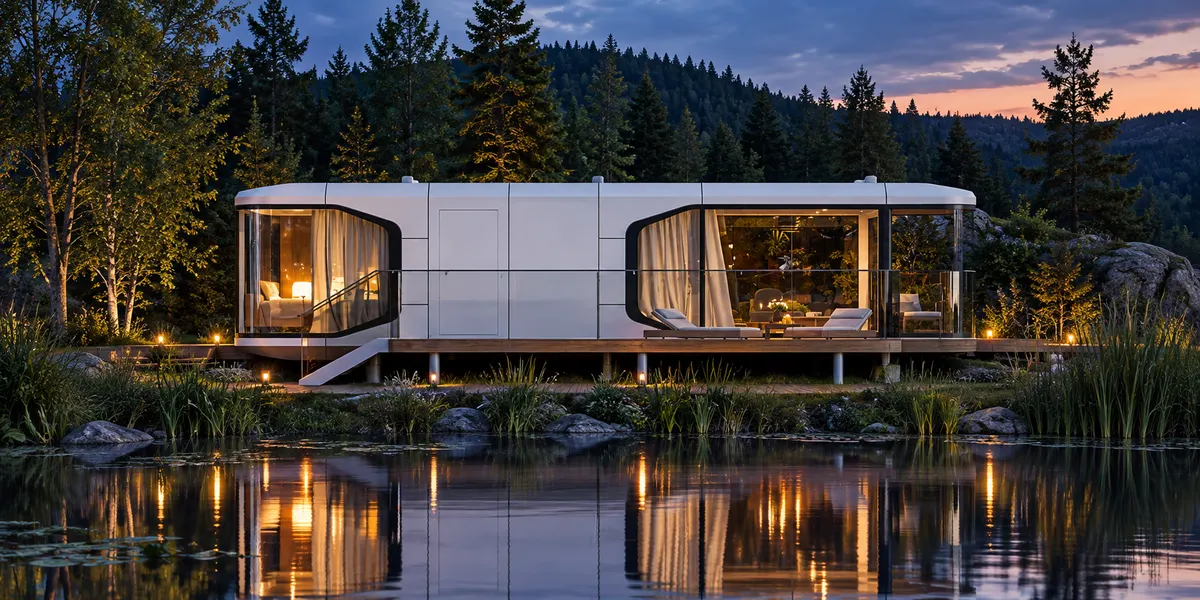

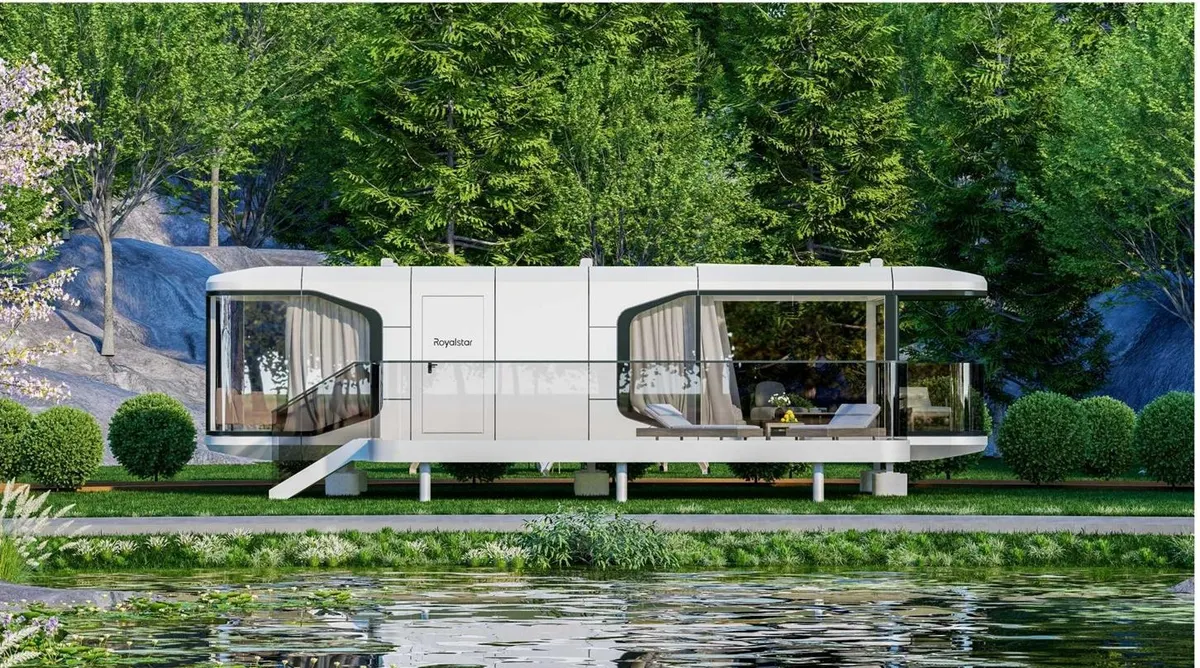

The N38 is an 11.8 m Star-series space capsule house with glazing at both ends and curved corners. Its 37.8 m² are laid out in a straight line, with a bedroom, a living room and a bathroom, plus a balcony, so every zone keeps a view.
With daylight coming in from both ends, the N38 suits long, narrow plots and positions between two views, such as a waterside terrace or a ridge. It is also a strong choice for lodges that want balcony suites without building separate decks.
Best for
- Waterside and hillside balcony suites
- Safari and eco-lodge rooms
- Cafés and reception pavilions
How the N38 is quoted and delivered
The price of a N38 depends on its configuration (shell colour, glazing, climate package and fit-out), the number of units, the port of loading and the delivery terms. That is why this page shows no price: you receive a current, dated written quotation that states all of them.
Arrives with the module
- Welded steel frame and base
- Aluminium shell in the chosen colour
- Insulated walls and Low-E glazing
- Bathroom with toilet, shower and water heater
- Lighting, curtains and the room control panel
- Air conditioning
Prepared on your site
- Truck and mobile-crane access to the final position
- Level footings, sized by a local engineer
- Power supply sized for the unit
- Water supply and wastewater connection
- Local planning, building and use permits
Questions about the N38
The N38 measures 11.8 × 3.2 × 3.2 m (L × W × H) and has a floor area of 37.8 m²: one bedroom, one living area, one bathroom and a balcony.
They are close in size. The N38 is 11.8 m long with glass at both curved ends; the F40 is 11.5 m long with a continuous glass wall along one side and two living areas.
Yes. A balcony gives each unit its own outdoor space, which is useful on waterside or hillside sites without room for separate decks.
Yes. The N38 is fitted out at the factory and ships as one complete module, wrapped and strapped on a flat-rack container or carried as deck cargo. The packing method and port of loading are confirmed in the quotation.
Level footings, usually concrete piers or strip footings, sized by a local engineer for your soil and the unit's weight. Footings, utility connections and approvals are arranged locally.
