Compare capsulehouse models
Compare up to four space capsule house models side by side: size, layout, glazing and construction.
F30A one-bedroom suite with a full glass wall
F40Room to live, with a private balcony
N38A long-view suite with glass at both ends
H40Two bedrooms for families and groups
Performance parameters
Floor area
29.8 m²
Floor area
38 m²
Floor area
37.8 m²
Floor area
38.9 m²
Exterior (L × W × H)
9.3 × 3.2 × 3.2 m
Exterior (L × W × H)
11.5 × 3.3 × 3.3 m
Exterior (L × W × H)
11.8 × 3.2 × 3.2 m
Exterior (L × W × H)
11.8 × 3.3 × 3.2 m
Length
9.3 m
Length
11.5 m
Length
11.8 m
Length
11.8 m
Width
3.2 m
Width
3.3 m
Width
3.2 m
Width
3.3 m
Height
3.2 m
Height
3.3 m
Height
3.2 m
Height
3.2 m
Layout
1 bedroom, 1 living area, 1 bathroom
Layout
1 bedroom, 2 living areas, 1 bathroom, 1 balcony
Layout
1 bedroom, 1 living area, 1 bathroom, 1 balcony
Layout
2 bedrooms, 1 bathroom, 1 balcony
Bedrooms / rooms
1
Bedrooms / rooms
1
Bedrooms / rooms
1
Bedrooms / rooms
2
Bathrooms
1
Bathrooms
1
Bathrooms
1
Bathrooms
1
Balcony
—
Balcony
1
Balcony
1
Balcony
1
Series
Ark
Series
Ark
Series
Star
Series
Cloud
Shell form
Straight body, rounded edges
Shell form
Straight body, rounded edges
Shell form
Straight body, glazed ends
Shell form
Straight body, glazed corners
Main glazing
Long side, floor to ceiling
Main glazing
Long side, floor to ceiling
Main glazing
Both ends, curved corners
Main glazing
Both ends, large corners

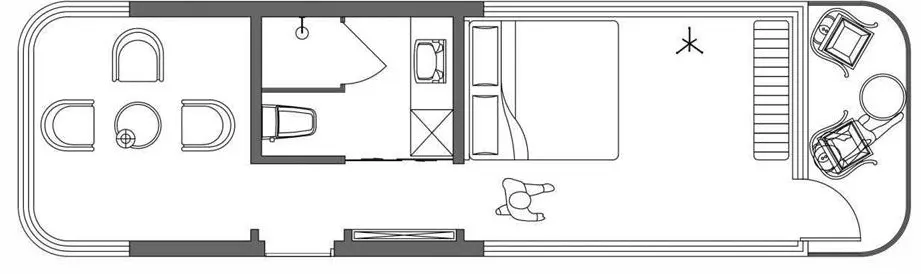

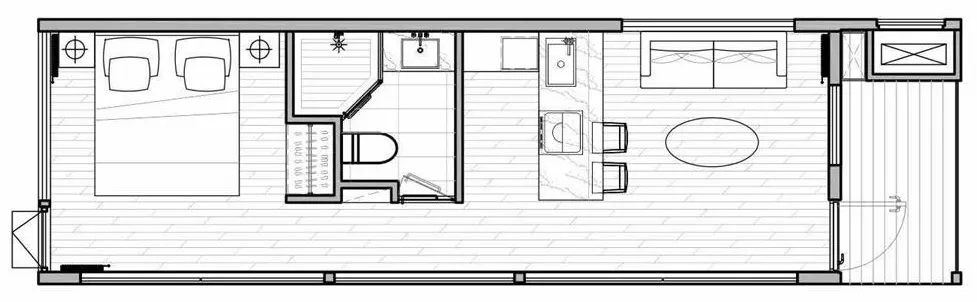

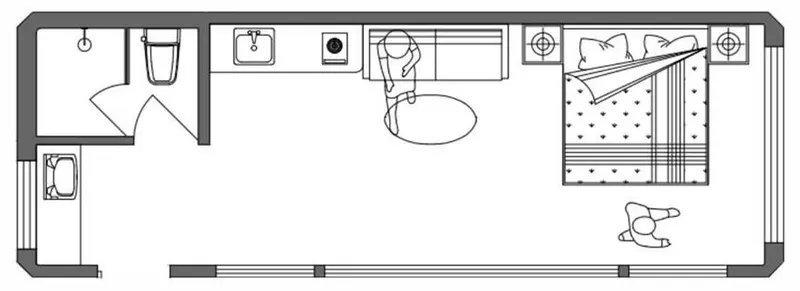

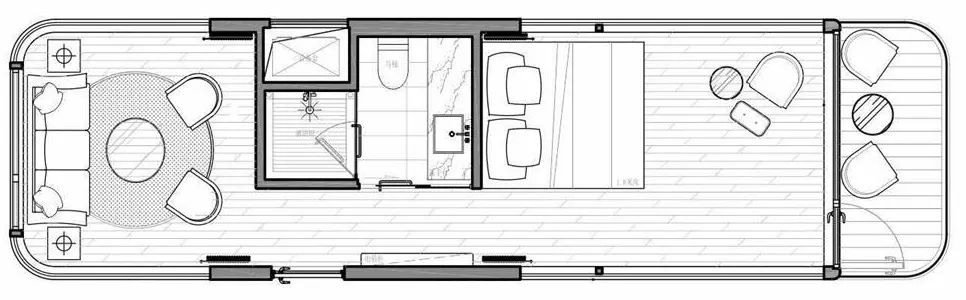

Floor plans
Construction & fit-out
Structure
80 × 80 × 5 mm steel frame
Structure
80 × 80 × 5 mm steel frame
Structure
80 × 80 × 5 mm steel frame
Structure
80 × 80 × 5 mm steel frame
Shell
Aluminium alloy, fluorocarbon finish
Shell
Aluminium alloy, fluorocarbon finish
Shell
Aluminium alloy, fluorocarbon finish
Shell
Aluminium alloy, fluorocarbon finish
Walls
10–20 cm polyurethane insulated
Walls
10–20 cm polyurethane insulated
Walls
10–20 cm polyurethane insulated
Walls
10–20 cm polyurethane insulated
Glazing
Double-glazed Low-E
Glazing
Double-glazed Low-E
Glazing
Double-glazed Low-E
Glazing
Double-glazed Low-E
Bathroom
Separated wet and dry areas
Bathroom
Separated wet and dry areas
Bathroom
Separated wet and dry areas
Bathroom
Separated wet and dry areas
Climate
Air conditioning; cold-climate option
Climate
Air conditioning; cold-climate option
Climate
Air conditioning; cold-climate option
Climate
Air conditioning; cold-climate option
Specifications follow current manufacturer documentation and are confirmed with each quotation.
