H40Cloud series capsule house
Two bedrooms for families and groups. 38.9 m² · 2 bedrooms · 1 bathroom · 1 balcony
The H40 is the two-bedroom space capsule house: 11.8 m long and 38.9 m², with a shared bathroom and a balcony. It suits family units, staff housing and lodges that sell by the room.
The central bathroom separates the rooms at each end of the unit.

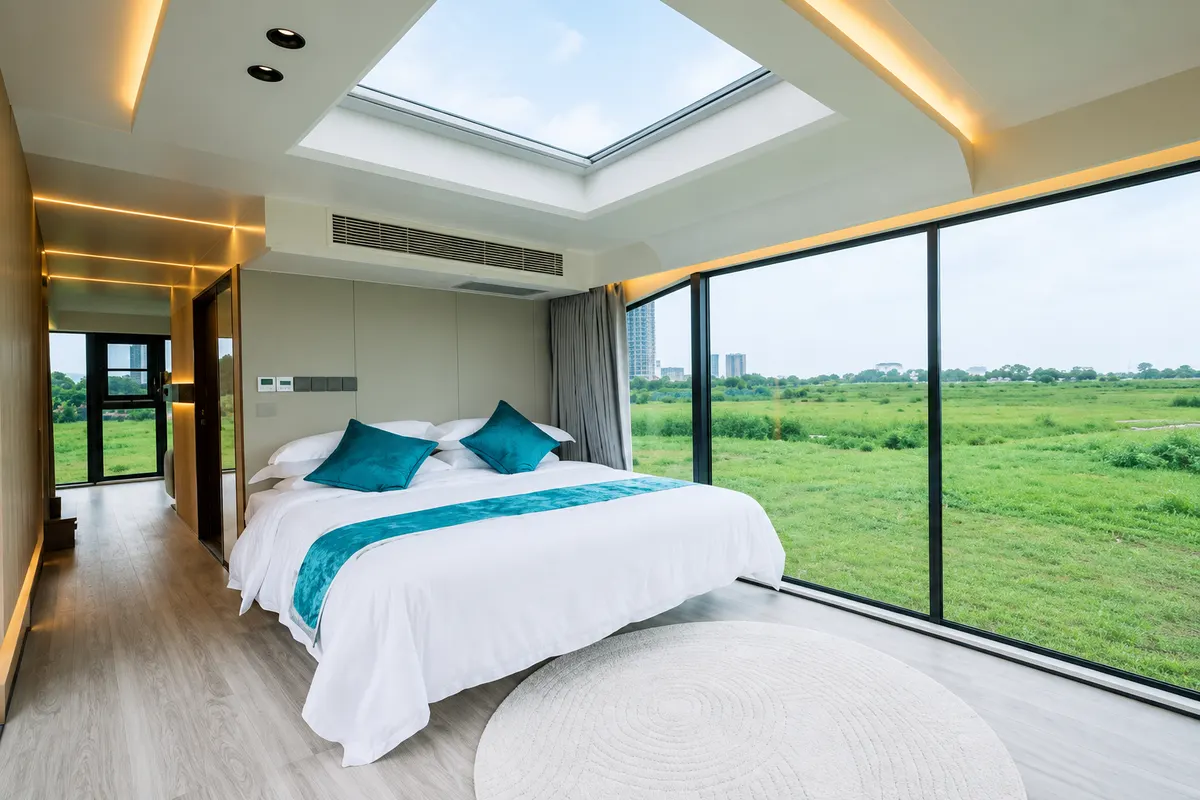

Large glass corners bring views into both ends.

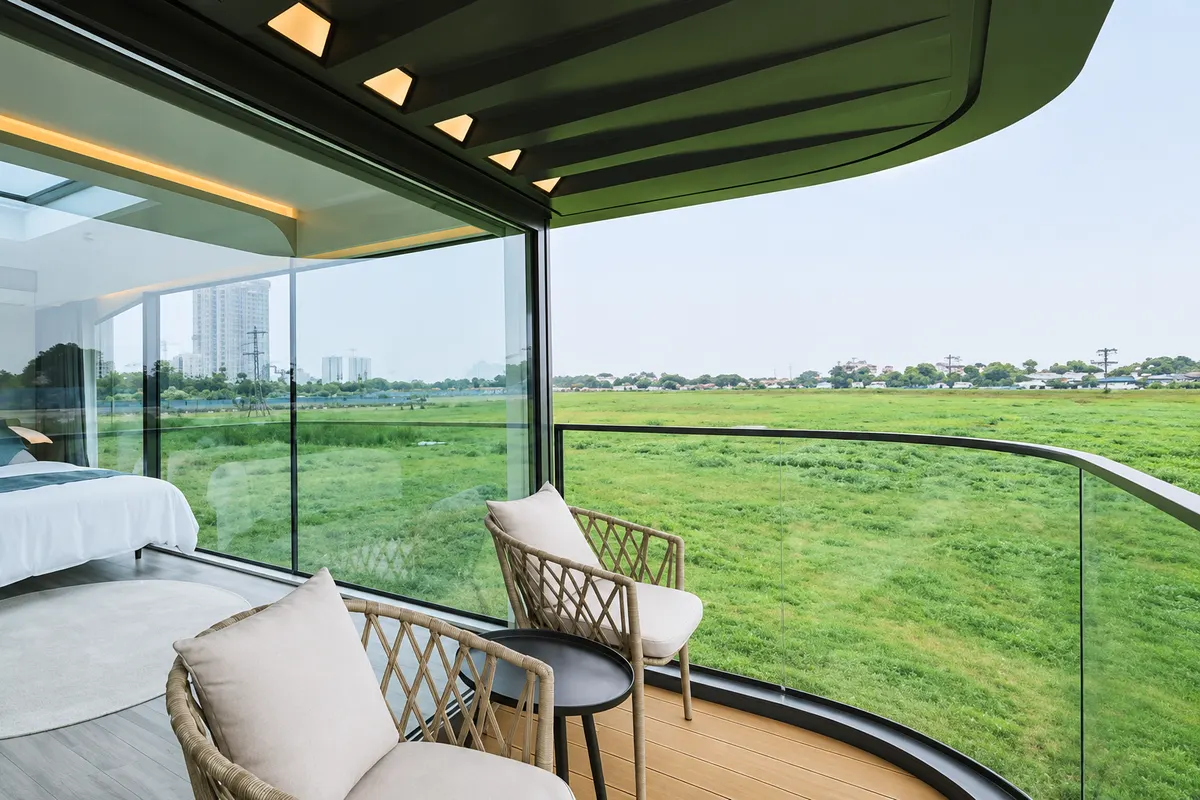

Outdoor space shared by the unit.
Bathroom, lighting, curtains, the control panel and air conditioning are installed before the module ships.
A welded 80 × 80 × 5 mm rectangular steel frame carries the shell, floor and fit-out as one module. Standard configuration includes a separated wet and dry bathroom, water heater, lighting, curtains, a control panel and air conditioning.
For cold regions the manufacturer offers thicker insulation, trace-heated water lines and auxiliary electric heating. Hot-climate glazing and cooling are confirmed per site.
- Model
- H40
- Series
- Cloud
- Manufacturer
- Royalstar Smart House
- Exterior (L × W × H)
- 11.8 × 3.3 × 3.2 m
- Floor area
- 38.9 m²
- Layout
- 2 bedrooms, 1 bathroom, 1 balcony
- Bedrooms / rooms
- 2
- Bathrooms
- 1
- Balcony
- 1
- Structure
- Welded 80 × 80 × 5 mm rectangular steel frame
- Shell
- Aluminium alloy panels
- Shell finish
- Baked fluorocarbon coating, five standard colours
- Walls
- 10–20 cm, polyurethane insulated
- Glazing
- Double-glazed Low-E; triple glazing optional
- Base
- Steel base for level footings (footings by others)
- Bathroom
- Separated wet and dry areas, toilet, shower
- Hot water
- Water heater
- Lighting
- Interior lighting and curtains
- Controls
- Room control panel
- Climate
- Air conditioning
- Options
- Cold-climate package, layout changes, finishes, logo
Specifications follow current manufacturer documentation and are confirmed with each quotation.

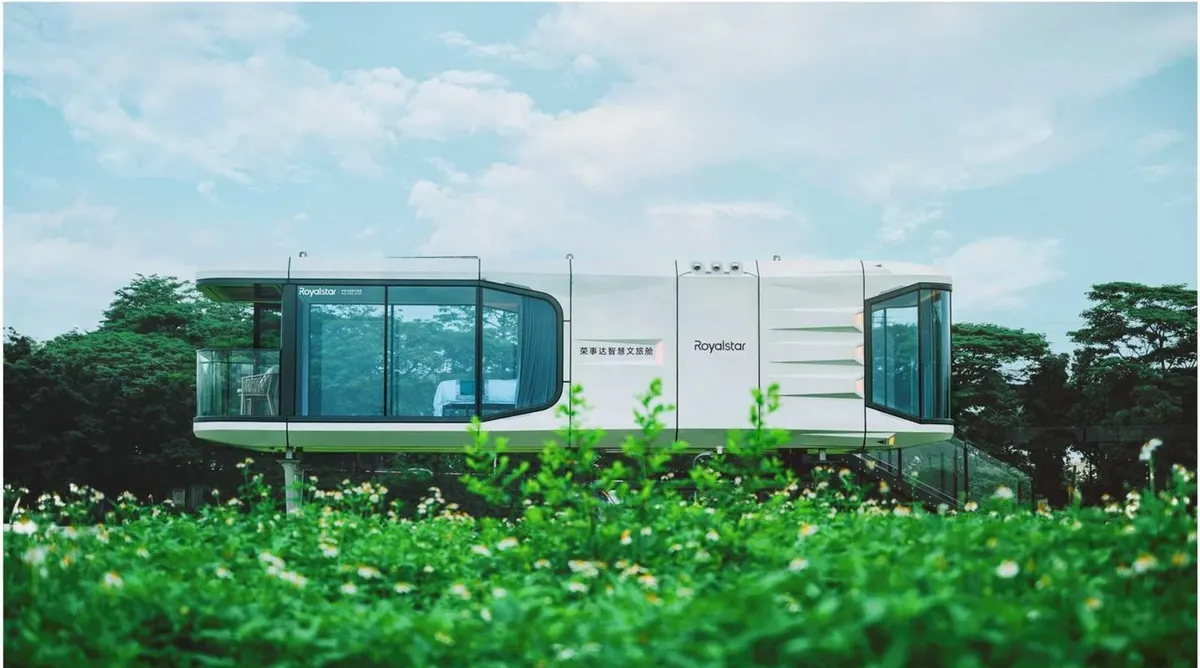

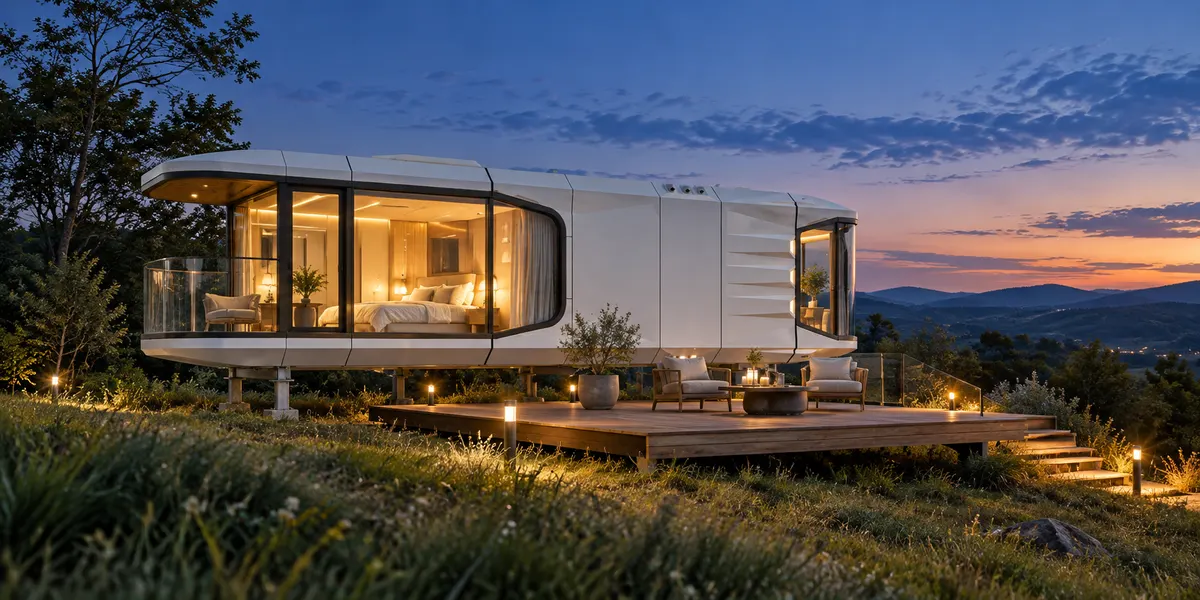

The H40 is the two-bedroom model in the range: a Cloud-series space capsule house 11.8 m long with 38.9 m² of floor area. A central bathroom separates a room at each end, and large glazed corners bring views into both.
That arrangement suits family units, small groups travelling together, lodges that sell by the room and staff housing on remote sites. A balcony gives the unit shared outdoor space.
Best for
- Family and group units
- Safari and eco-lodges that sell by the room
- Staff housing on remote sites
How the H40 is quoted and delivered
The price of a H40 depends on its configuration (shell colour, glazing, climate package and fit-out), the number of units, the port of loading and the delivery terms. That is why this page shows no price: you receive a current, dated written quotation that states all of them.
Arrives with the module
- Welded steel frame and base
- Aluminium shell in the chosen colour
- Insulated walls and Low-E glazing
- Bathroom with toilet, shower and water heater
- Lighting, curtains and the room control panel
- Air conditioning
Prepared on your site
- Truck and mobile-crane access to the final position
- Level footings, sized by a local engineer
- Power supply sized for the unit
- Water supply and wastewater connection
- Local planning, building and use permits
Questions about the H40
The H40 measures 11.8 × 3.3 × 3.2 m (L × W × H) and has a floor area of 38.9 m²: two bedrooms, one bathroom and a balcony.
One, placed in the middle of the unit between the two bedrooms.
Of the eight models on this site it has the largest floor area, 38.9 m². The F40 and R38 (38 m²) and the N38 (37.8 m²) are similar in size; the F40 and N38 have one bedroom and the R38 has two rooms.
Yes. The H40 is fitted out at the factory and ships as one complete module, wrapped and strapped on a flat-rack container or carried as deck cargo. The packing method and port of loading are confirmed in the quotation.
Level footings, usually concrete piers or strip footings, sized by a local engineer for your soil and the unit's weight. Footings, utility connections and approvals are arranged locally.
