F16Ark series capsule house
A compact studio for small plots. 15.7 m² · 1 bedroom · 1 bathroom
The F16 is the smallest space capsule house in the range: 5.6 × 2.8 m and 15.7 m², with a bedroom and bathroom. It works as a guest studio, a garden office or an add-on room where space is tight.
Fits backyards, rooftops and infill plots.
A complete wet room despite the compact size.
Guest room, studio, office or reception pod.

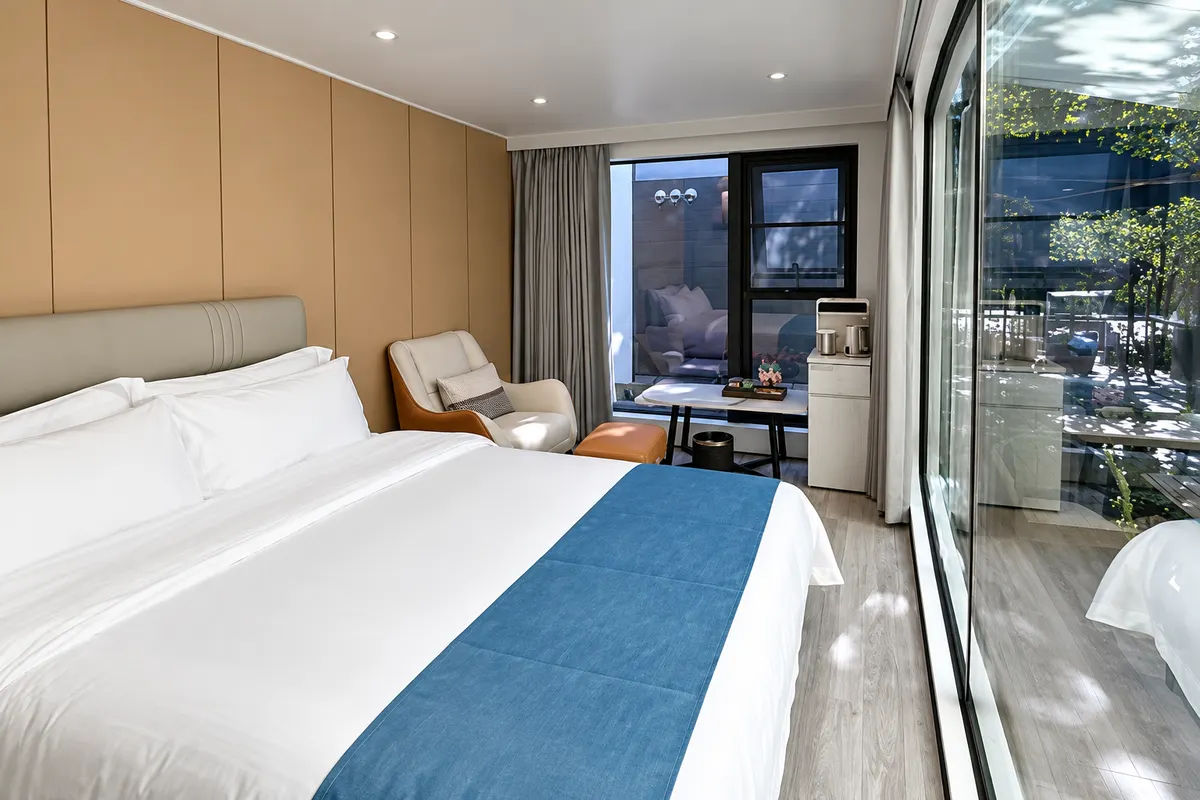

Bathroom, lighting, curtains, the control panel and air conditioning are installed before the module ships.

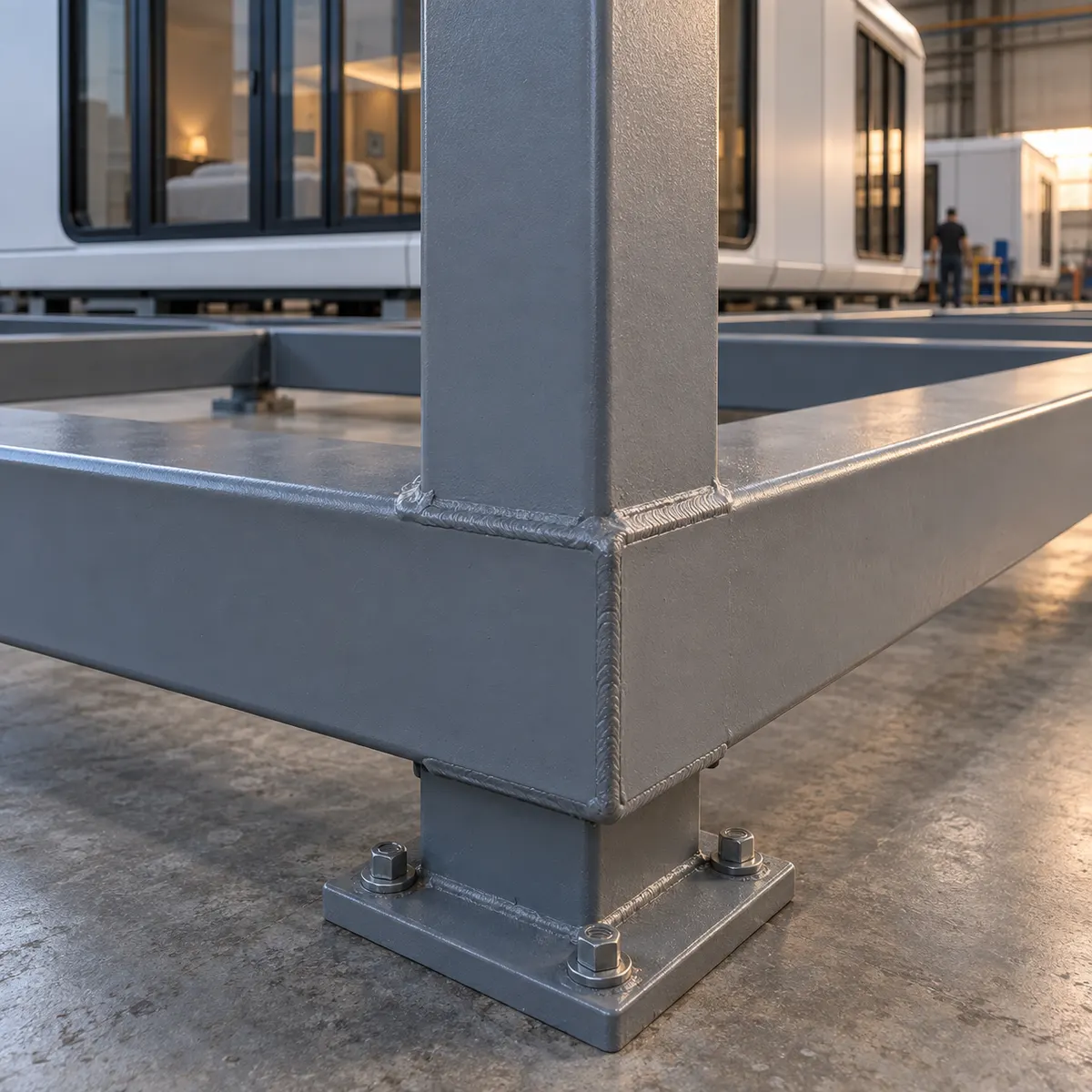

A welded 80 × 80 × 5 mm rectangular steel frame carries the shell, floor and fit-out as one module. Standard configuration includes a separated wet and dry bathroom, water heater, lighting, curtains, a control panel and air conditioning.

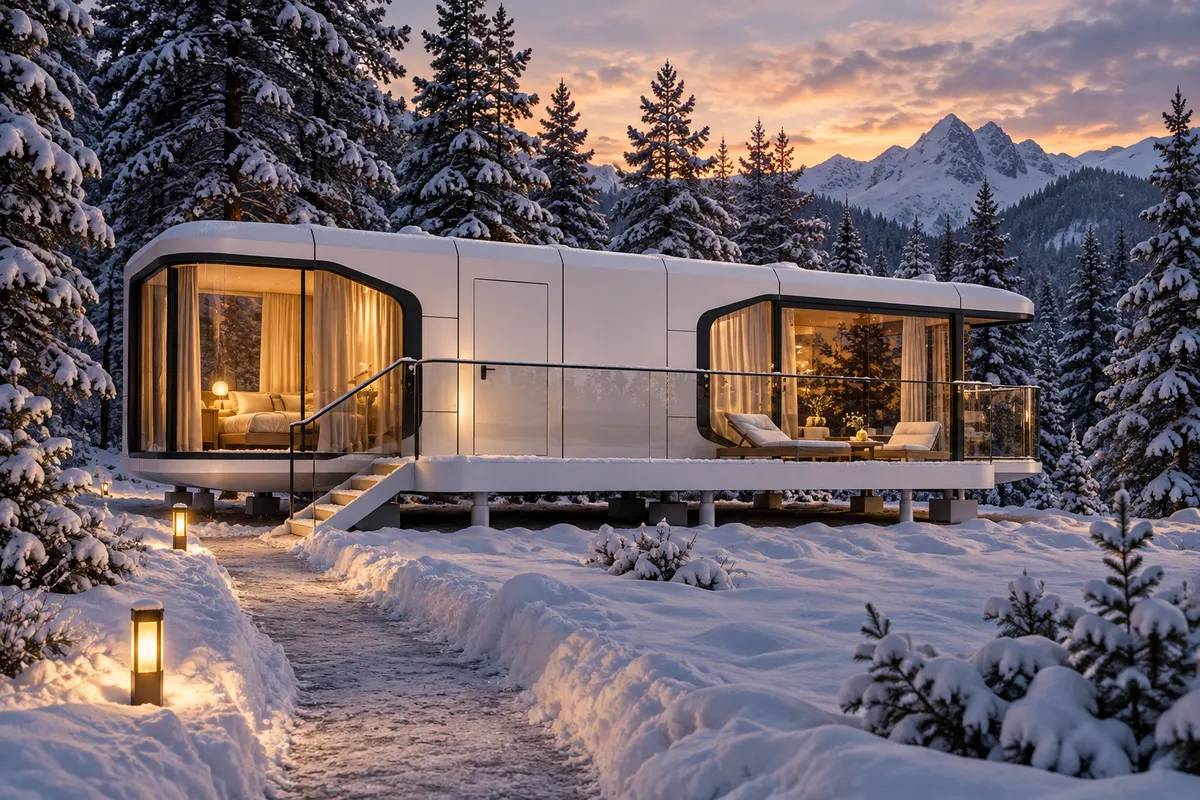

For cold regions the manufacturer offers thicker insulation, trace-heated water lines and auxiliary electric heating. Hot-climate glazing and cooling are confirmed per site.
- Model
- F16
- Series
- Ark
- Manufacturer
- Royalstar Smart House
- Exterior (L × W × H)
- 5.6 × 2.8 × 3 m
- Floor area
- 15.7 m²
- Layout
- 1 bedroom, 1 bathroom
- Bedrooms / rooms
- 1
- Bathrooms
- 1
- Balcony
- —
- Structure
- Welded 80 × 80 × 5 mm rectangular steel frame
- Shell
- Aluminium alloy panels
- Shell finish
- Baked fluorocarbon coating, five standard colours
- Walls
- 10–20 cm, polyurethane insulated
- Glazing
- Double-glazed Low-E; triple glazing optional
- Base
- Steel base for level footings (footings by others)
- Bathroom
- Separated wet and dry areas, toilet, shower
- Hot water
- Water heater
- Lighting
- Interior lighting and curtains
- Controls
- Room control panel
- Climate
- Air conditioning
- Options
- Cold-climate package, layout changes, finishes, logo
Specifications follow current manufacturer documentation and are confirmed with each quotation.

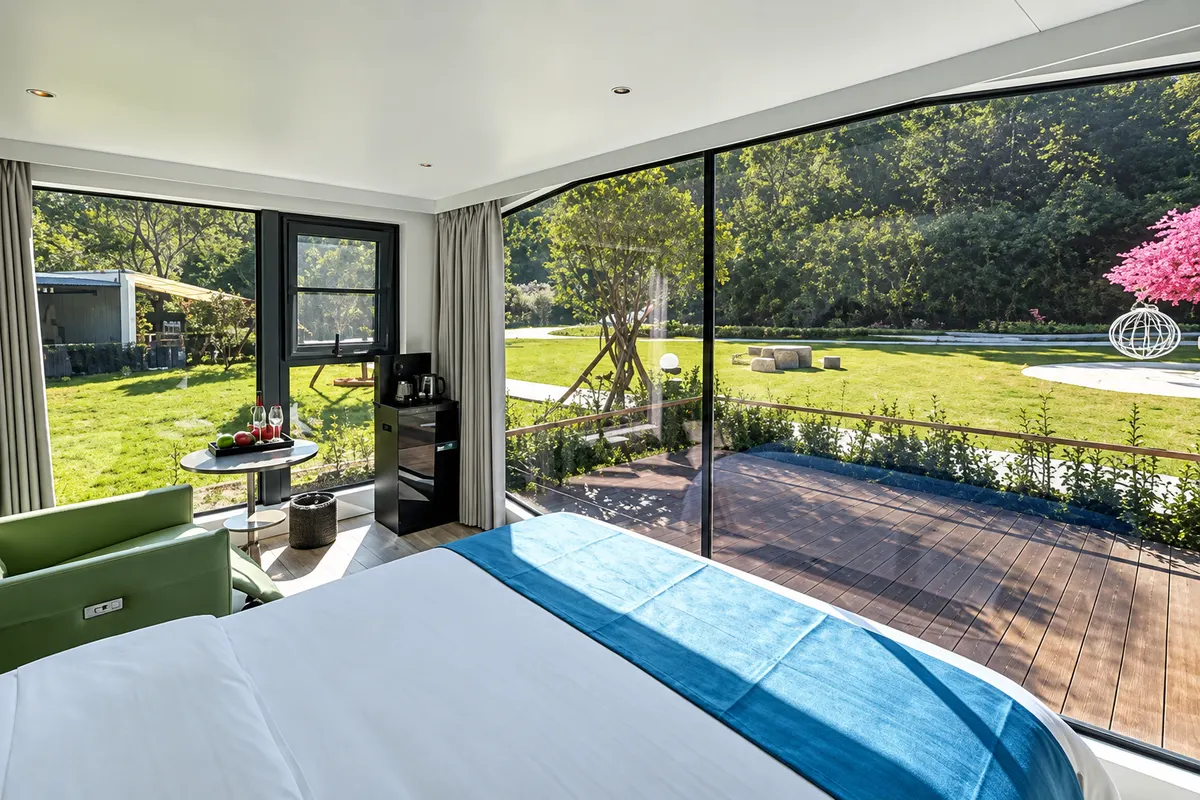

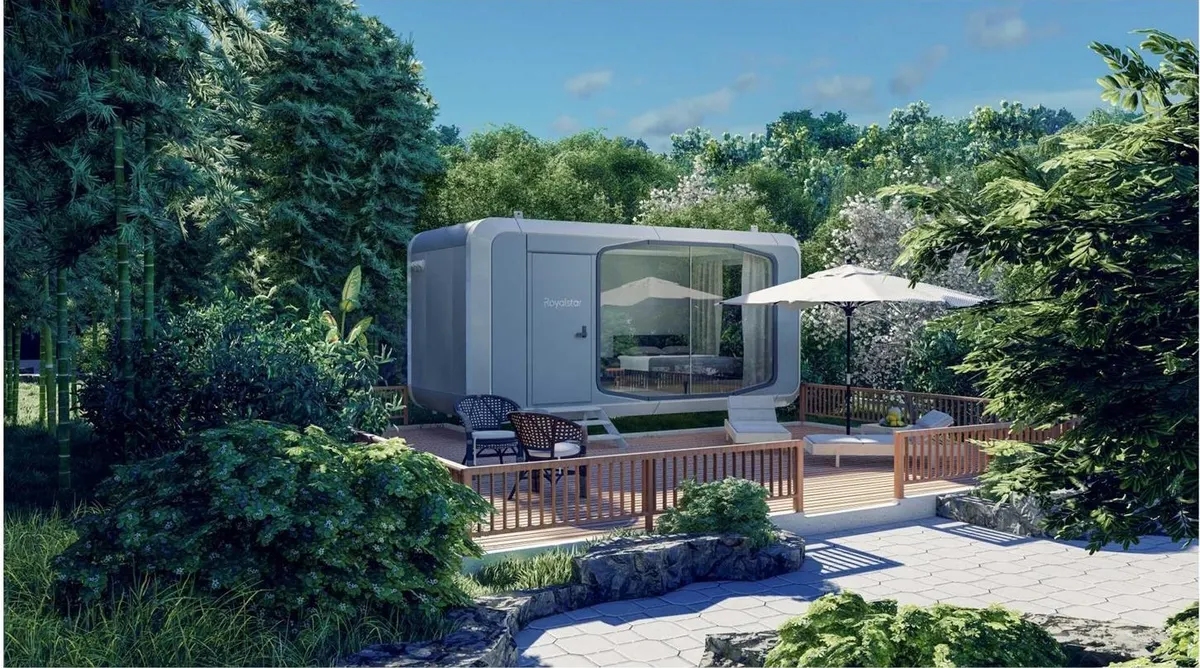

The F16 is the smallest space capsule house in the range. Its Ark-series shell measures 5.6 × 2.8 × 3.0 m, and its 15.7 m² fit a bedroom and a complete bathroom behind a floor-to-ceiling glazed front.

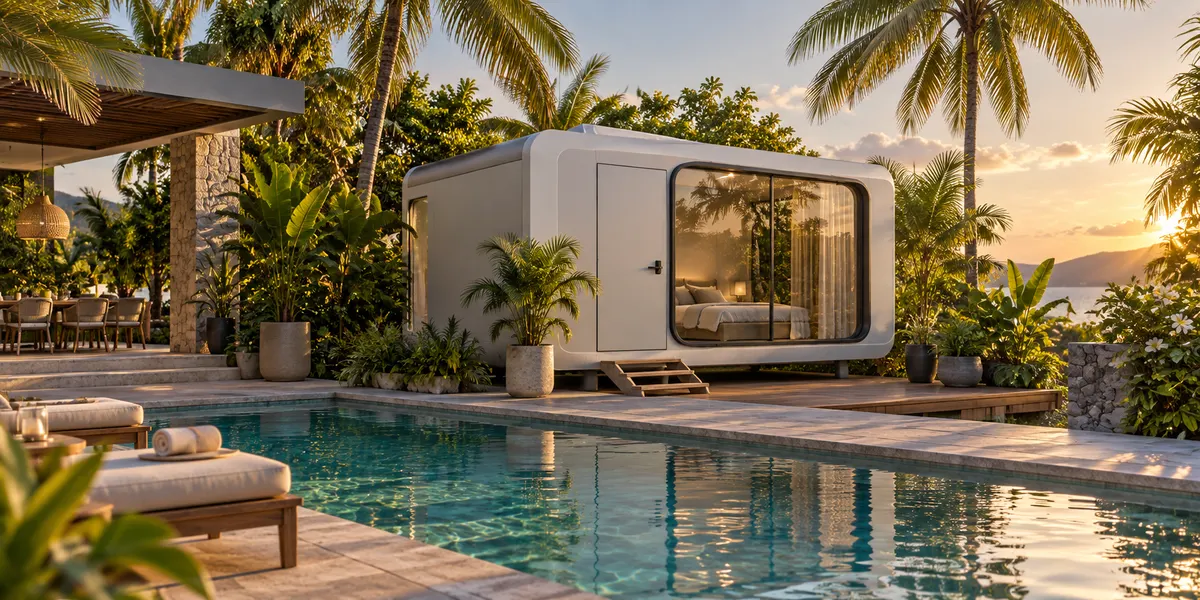

Its size is its advantage: an F16 fits backyards, rooftops, courtyards and infill plots where a larger unit could not be lifted in. Owners use it as a guest studio, a garden office, a reception pod or an extra room beside a larger cabin.
Best for
- Garden offices and studios
- Guest rooms beside an existing home
- Reception and check-in pods
How the F16 is quoted and delivered
The price of a F16 depends on its configuration (shell colour, glazing, climate package and fit-out), the number of units, the port of loading and the delivery terms. That is why this page shows no price: you receive a current, dated written quotation that states all of them.
Arrives with the module
- Welded steel frame and base
- Aluminium shell in the chosen colour
- Insulated walls and Low-E glazing
- Bathroom with toilet, shower and water heater
- Lighting, curtains and the room control panel
- Air conditioning
Prepared on your site
- Truck and mobile-crane access to the final position
- Level footings, sized by a local engineer
- Power supply sized for the unit
- Water supply and wastewater connection
- Local planning, building and use permits
Questions about the F16
The F16 measures 5.6 × 2.8 × 3.0 m (L × W × H) and has a floor area of 15.7 m², with one bedroom and one bathroom.
Yes. Despite its size it has a complete bathroom with a toilet and shower, installed at the factory as part of the standard fit-out.
Often, but check access first. A truck and a mobile crane have to reach a position from which the crane can lift the module over walls, trees or buildings onto level footings.
Yes. The F16 is fitted out at the factory and ships as one complete module, wrapped and strapped on a flat-rack container or carried as deck cargo. The packing method and port of loading are confirmed in the quotation.
Level footings, usually concrete piers or strip footings, sized by a local engineer for your soil and the unit's weight. Footings, utility connections and approvals are arranged locally.
